FEATURES •Connection of max 2 actuators and 1 operating element •Max 50W power •Economical design for furniture market
|  |
SPECIFATIONS
| Nunber of actuator outputs | 1-2 outputs | Overload protection | PTC protection |
| Output Voltage | 24/29 | Fuse | Inside or outside(option) |
| Input Voltage | 110 or 230 | Cable length | 3m |
| Transformer power | 50 | IP Grade | IP43 |
| Actuator plugs | DIN 4 bend plug | Ambient temperature | +5ºC ~+40ºC |
| Hand/Foot-Control plugs | Bend plug | Standard | UL60601 /CE |
| Power plug | Option | Optional Features | 9V*2 batteries built-in |
| Colour | Black or Gre | RF receiver built-in | |
| Duty cycle | 10%,max 2min.continuous use | ||
DIMENSIONS

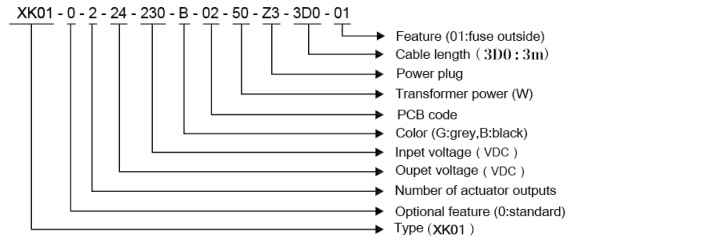

ORDER KEY EXAMPLE
