FEATURES •Connection of max 4 actuators and 1 operating element |  |
SPECIFATIONS
| Nunber of actuator outputs | 1-4 outputs | Duty cycle | 10%,max 2min.continuous use |
| Output Voltage | 24 | Overload protection | Shunt or total road protection(option) |
| Input Voltage | 110 or 230 | Fuse | Can be changed from outer |
| Transformer power | 86/150/200 | Cable length | 3m |
| Actuator plugs | DIN 4 bend plug | IP Grade | IP54 |
| Hand/Foot-Control plugs | Bend plug | Ambient temperature | +5ºC ~+40ºC |
| Power plug | Option | Standard | CE |
| Colour | Black or Grey | ||
DIMENSIONS

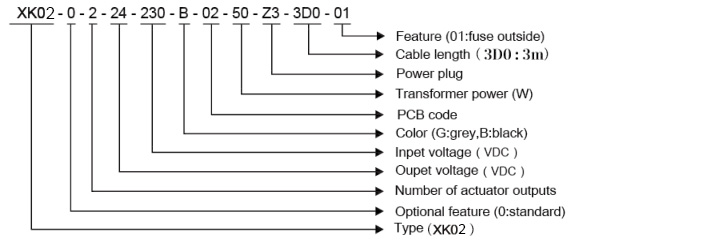

ORDER KEY EXAMPLE
