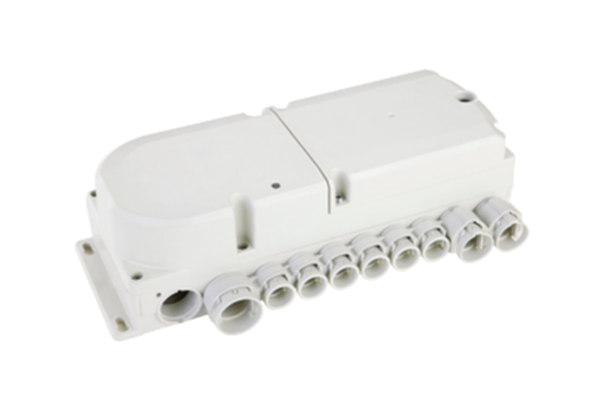

XK03C



FEATURES

•Connection of max 1-6 actuators and 2 operating element

•IHaa battey charger option built-in and IP54

•IP54,UL approval






SPECIFATIONS


Nunber of actuator outputs1-6 outputsDuty cycle 10%,max 2min.continuous use
Output Voltage24/29Overload protectionShunt or total road protection(option)
Input Voltage110  or 230FuseCan be changed from outer
Transformer power86/150/200/360Cable length3m
Actuator plugsDIN 4 bend plugIP GradeIP54
Hand/Foot-Control plugsBend plugAmbient temperature+5ºC ~+40ºC
Power plugOptionStandardEN60601/UL60601/CE
ColourBlack or Grey

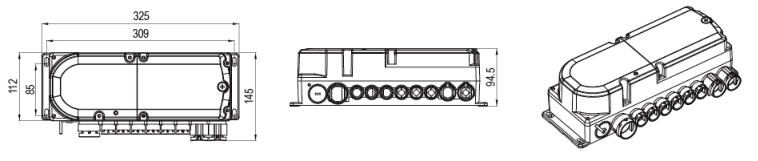

DIMENSIONS

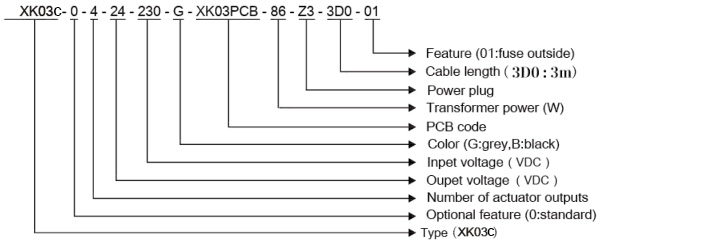

ORDER KEY EXAMPLE
